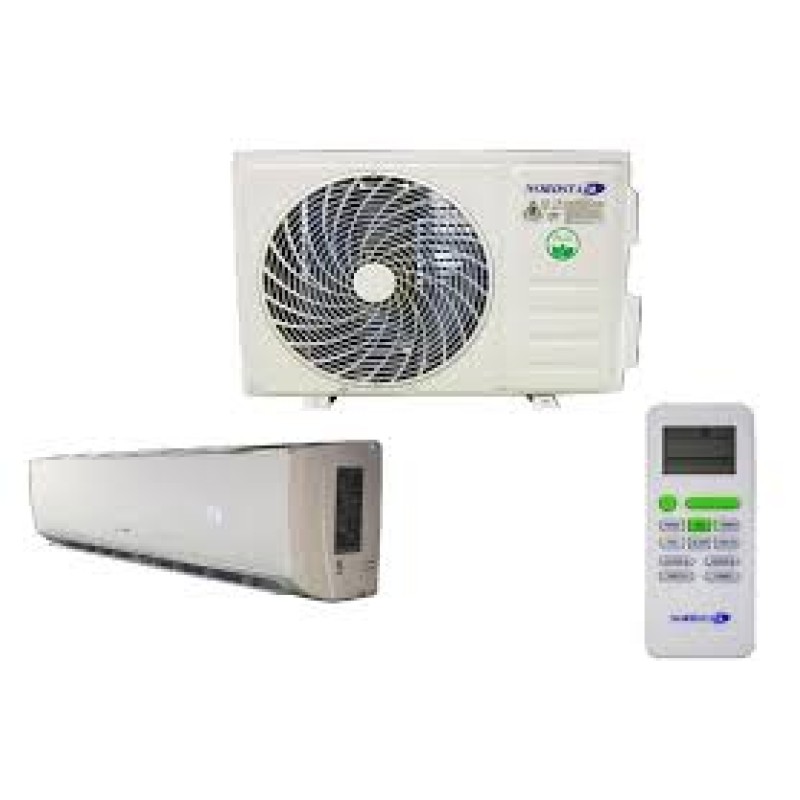

NORDSTAR TN 10500btu

NORDSTAR TN 10500btu. Model: NORDSTAR10500btu.

TAC-10CHSD / IFI model

Voltage / Frequency / Phases V / Hz / Ph 220-240 / 50/1

GMCC compressor type *

Rated Power TH / Ψ BTU / h 10,500

Operating Cold Refrigeration C0 0C0 Up to + 53C0

Cooling Power BTU / h 8,871 BTU (3207 - 11372)

Cooling Power W 2600 W (940 ~ 3320)

Operating Range Heating C0 - 20C0 to + 30C0

Power Heating BTU / h 8.905 BTU (3207 - 11532)

Power Heating W 2610 W (940 ~ 3380)

Power Consumption Heating W 752 (240-1280)

Operating Voltage Cooling Heating A A 4.0 A (1.2 - 6.3) 4.1 A (1.2 - 6.5)

SEER 6.5 / A ++

SCOP 5.1 / 4.0

Energy Class A +++ / A +

Air Supply Internal Unit m3 / h 420

Noise Device Internal Unit Outdoor Unit dB (A) dB (A) 22/25/33/40 50 in / 60 out

Net Dimensions (MXPXY) Indoor Unit Outdoor Unit mm mm 698 X 255 X 190 715 X 240 X 492

Insulations 1 / 4-3 / 8 (Φ6,35-Φ9,52)

Refrigerant R32 530 gr

Pipes Maximum Length / Height 25.0 / 10

* GMCC TOSHIBA TECHNOLOGY
